EM24

Configuration

Check that the Carlo Gavazzi meter is set to read both import and export power. An unsuitable mode may lead to:

• Missing readings of feed-in, or

• Feed-in being counted as offtake (on top of the ‘actual offtake’)

You can set this in the ‘MEASurE’ configuration menu on the energy meter. This should be set to ‘b’.

Warning

Warning

This setting may not be present on MID certified models (model numbers ending in PFA and PFB).

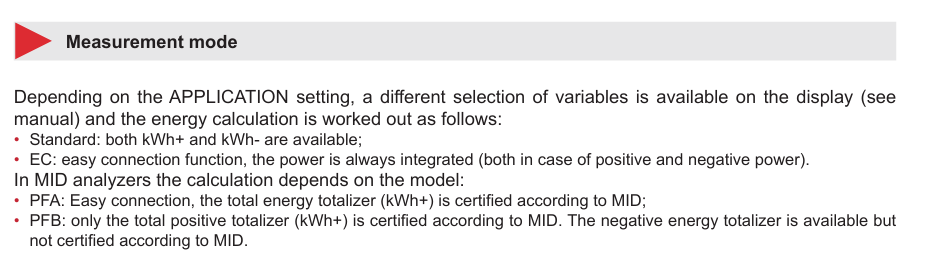

Image 1

NOTE: RS485 Device Addresses

• You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.

• Use lower addresses first (1, 2, ...)

• For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits.

Set the Modbus address through the power meter's “Address” configuration menu.
